Cellular remote monitoring for water utilities
Smart Network Controller (SNC)
Wire the SNC to the flow meters and turbidimeters you already run, and watch your site from any desk or phone. No full SCADA system, no daily drive.
Ask about the SNC View the presentation
What it does
Your remote site readings, on your computer
The SNC reads the instrument you already have at a site and sends that reading to a secure web page. You see the same numbers your operator sees in the field, live, from any browser. Nothing to install.
Your data, on the web
One screen for every site
- Live flow, turbidity, level, and daily totals
- Trends over 24 hours, 48 hours, a week, or a month
- Totalized volume calculated for you
- Optional alerts by text or messaging app: high, low, and fault limits you set per site
- Start with one site and add pumps, tanks, and plants to the same login

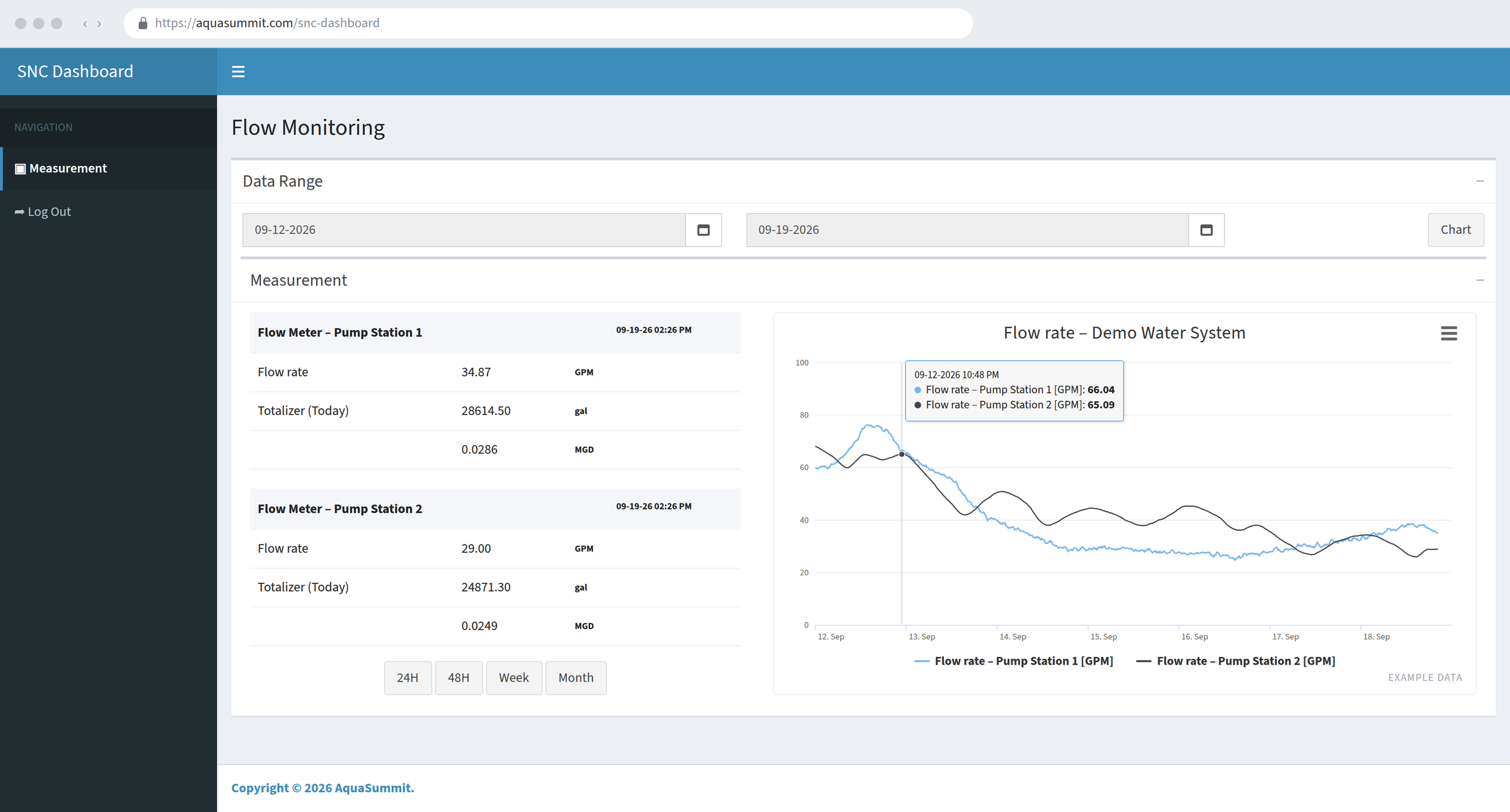

Example dashboard with demo data. Click to enlarge.
The instruments
Built for the meters you already run
Flow meters
Mag and transit-time ultrasonic. Rate and totalized volume (GPM, MGD, gallons) from your existing meter.
Turbidimeters
Process and finished water. Trend NTU in real time and catch turbidity creep before it becomes a compliance problem.
Levels and pressure
Tank and wet-well levels in feet. Main and pump pressure in PSI.
Pumps
Run and fault status, and pump runtime across your sites.
Connects over 4-20 mA and Modbus RTU, the signals your instruments already speak.
Security
Secure by design
Encrypted connection
Each SNC dials out to our server over an encrypted link. No open ports on your network.
Private login per project
Every site gets its own username and password. Operators see only their own plant.
US hosted, managed by us
Your data lives on AquaSummit servers in Atlanta, GA: patched, backed up, and monitored. Your data stays yours.
Where it fits
Remote sites and smaller water systems
Pump stations
Run/fault status and flow in GPM without a truck roll every day.
Tank levels
Storage in feet, in real time. Catch overflows and low tanks early.
Lift stations
Wet-well levels and pump runtime across all your sites.
Water quality
Turbidity trended continuously, at the plant or in distribution.
Simple to own
No big system to buy
We host the platform and keep it running. You pay for the device and the data plan. No server, no license fees, and nothing for your IT department to install or maintain.
Wire it into the meter you already have, power it up, and see data on the web the same afternoon.
Let's talk about your site
Tell us what you're trying to see: a pump station, a flow meter, a turbidimeter. We'll spec the right SNC, set it up, and walk you through your own data.
Ask about the SNC Call 404-414-1636
